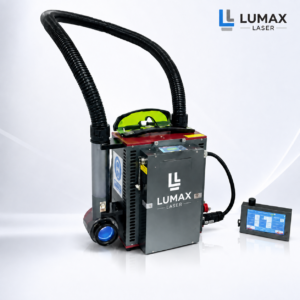

100W Portable Laser Cleaning Machine
The LMX-BLC100 Portable Laser Cleaning Machine is a compact backpack-style fiber laser cleaning system designed for professional rust removal, paint stripping, oxide layer cleaning, weld cleaning, and metal surface preparation. Combining lightweight portability with reliable performance, it is an ideal solution for industrial maintenance, field service, equipment repair, and outdoor cleaning applications.
Equipped with a 100W fiber laser source, the LMX-BLC100 delivers stable cleaning performance with a maximum pulse energy of 1.7 mJ and an adjustable 20–200 kHz pulse frequency. It features a 12,000 mm/s scanning speed, an adjustable cleaning width of 0–100 mm, and 9 built-in scanning patterns, allowing operators to optimize cleaning efficiency for different materials and surface conditions.
Designed for maximum mobility, the system includes a 0.75 kg ergonomic handheld cleaning head, a 1.5 m fiber cable, and an air-cooled design that minimizes maintenance requirements. An optional rechargeable battery provides 80–90 minutes of continuous operation, making it suitable for outdoor environments and locations without access to external power.
Laser cleaning is a non-contact and environmentally friendly process that removes rust, paint, grease, coatings, and oxide layers without chemicals or abrasives. It preserves the original substrate while reducing operating costs and improving productivity.
Key Features
- Lightweight backpack design for easy transportation
- High-performance 100W fiber laser source
- Maximum pulse energy of 1.7 mJ
- Adjustable pulse frequency from 20–200 kHz
- Scanning speed up to 12,000 mm/s
- Adjustable cleaning width from 0–100 mm
- Dual-axis scanning system with 9 cleaning modes
- Optional rechargeable battery for 80–90 minutes of operation
- Air-cooled system with low maintenance
- Non-contact cleaning with no damage to the base material
- No chemicals, abrasives, or consumables required
Technical Specifications
| Item | Specification |
|---|---|
| Model | LMX-BLC100 |
| Laser Power | 100W |
| Laser Source | Fiber Laser |
| Pulse Frequency | 20–200 kHz (Adjustable) |
| Maximum Pulse Energy | 1.7 mJ |
| Fiber Cable Length | 1.5 m |
| Cooling Method | Air Cooling |
| Scanning Speed | Up to 12,000 mm/s |
| Scan Width | 0–100 mm (Adjustable) |
| Scanning Modes | 9 Built-in Patterns |
| Power Supply | AC220V ±10%, 50/60Hz (DC48V Output) |
| Battery | Optional, 80–90 Minutes Continuous Operation |
| Machine Size (Without Battery) | 213 × 123 × 339 mm |
| Machine Size (With Battery) | 213 × 168 × 339 mm |
| Machine Weight (Without Battery) | 8.5 kg |
| Machine Weight (With Battery) | 12 kg |
| Cleaning Head Weight | 0.75 kg |
| Operation Mode | Handheld |
Applications
- Rust Removal
- Paint & Coating Removal
- Oxide Layer Cleaning
- Weld Seam Cleaning
- Oil & Grease Removal
- Metal Surface Preparation
- Mold Cleaning
- Industrial Equipment Maintenance
- Automotive Parts Cleaning
- Steel Structure Maintenance
- Shipbuilding & Marine Maintenance
- Power Generation Equipment Cleaning
Why Choose Lumax Laser
- Professional OEM & ODM Manufacturing
- Custom Branding & Private Label Services
- Strict Quality Control
- CE Certified Equipment
- Competitive Factory Pricing
- Global Shipping
- Fast Technical Support
- Reliable After-Sales Service
FAQ
What materials can the LMX-BLC100 clean?
The LMX-BLC100 is suitable for cleaning carbon steel, stainless steel, aluminum, copper, cast iron, molds, and other common metal surfaces.
Can it remove rust, paint, and oxide layers?
Yes. It efficiently removes rust, paint, coatings, grease, and oxide layers while protecting the original substrate.
Is the battery included?
An optional rechargeable battery is available and provides approximately 80–90 minutes of continuous operation for outdoor cleaning applications.
Does laser cleaning damage the material?
No. Laser cleaning is a non-contact process that removes contaminants without affecting the base material when proper parameters are used.
Do you provide OEM and private label services?
Yes. Lumax Laser offers OEM, ODM, logo customization, and private label manufacturing for distributors, dealers, and equipment brands worldwide.
